Super Duty Rear Air Suspension (1999-Present F-250/F-350/F-450)

$4,500.00

Completely bolt on rear air suspension kit for your 1999-Present Ford F250, F350, F450 single rear wheel (SRW) or dual rear wheel (DRW) options.

Typically ships in 8-12 weeks depending on queue size.

See more details below.

SKU: N/A Categories: ,


Description

*OFF ROAD USE ONLY

Designed for factory height to fully lowered known to use a 24×14 rear wheel using 305/35/24 Nitto Terra Grapplers 1/2″ off the tire.
Custom/Modified exhaust may be required.

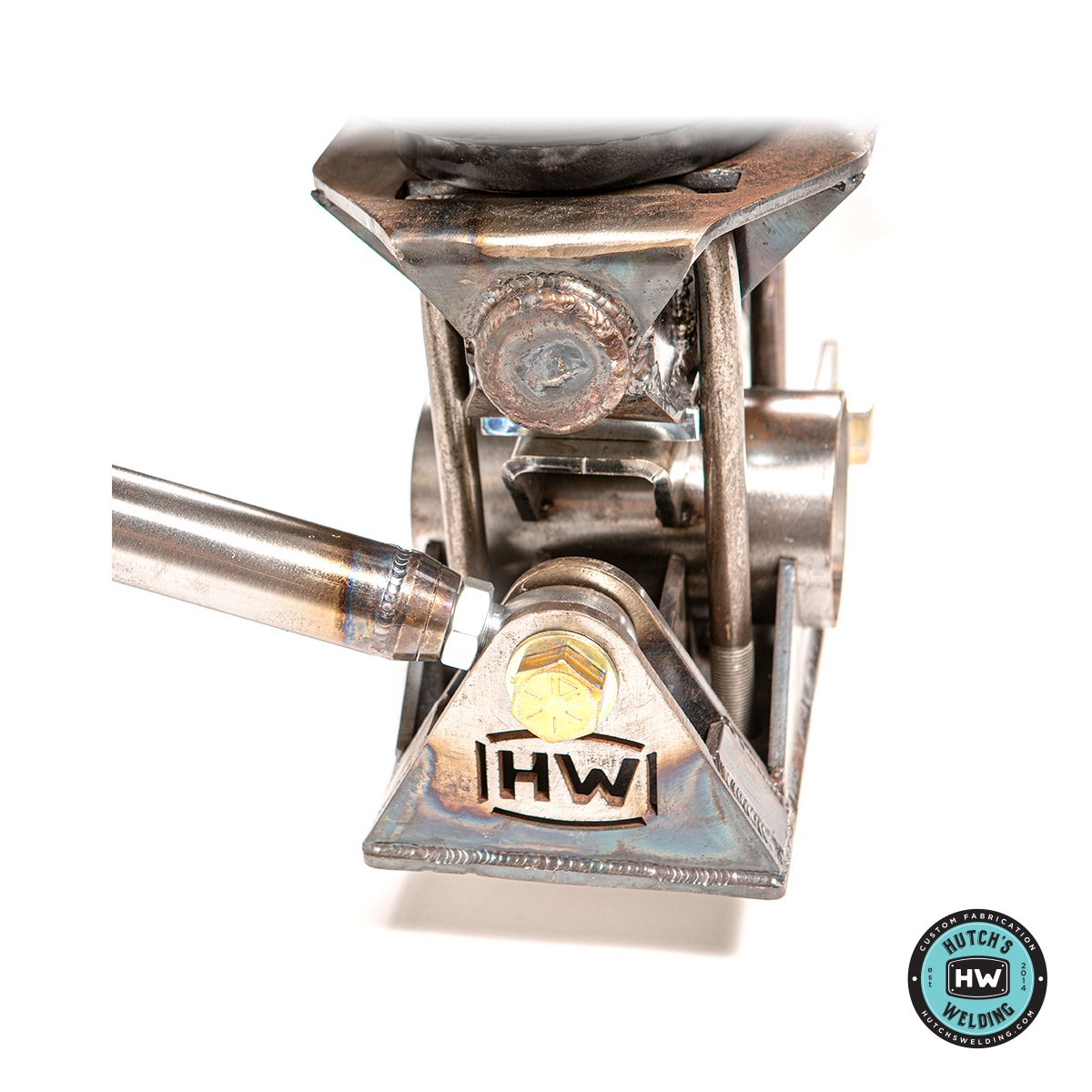

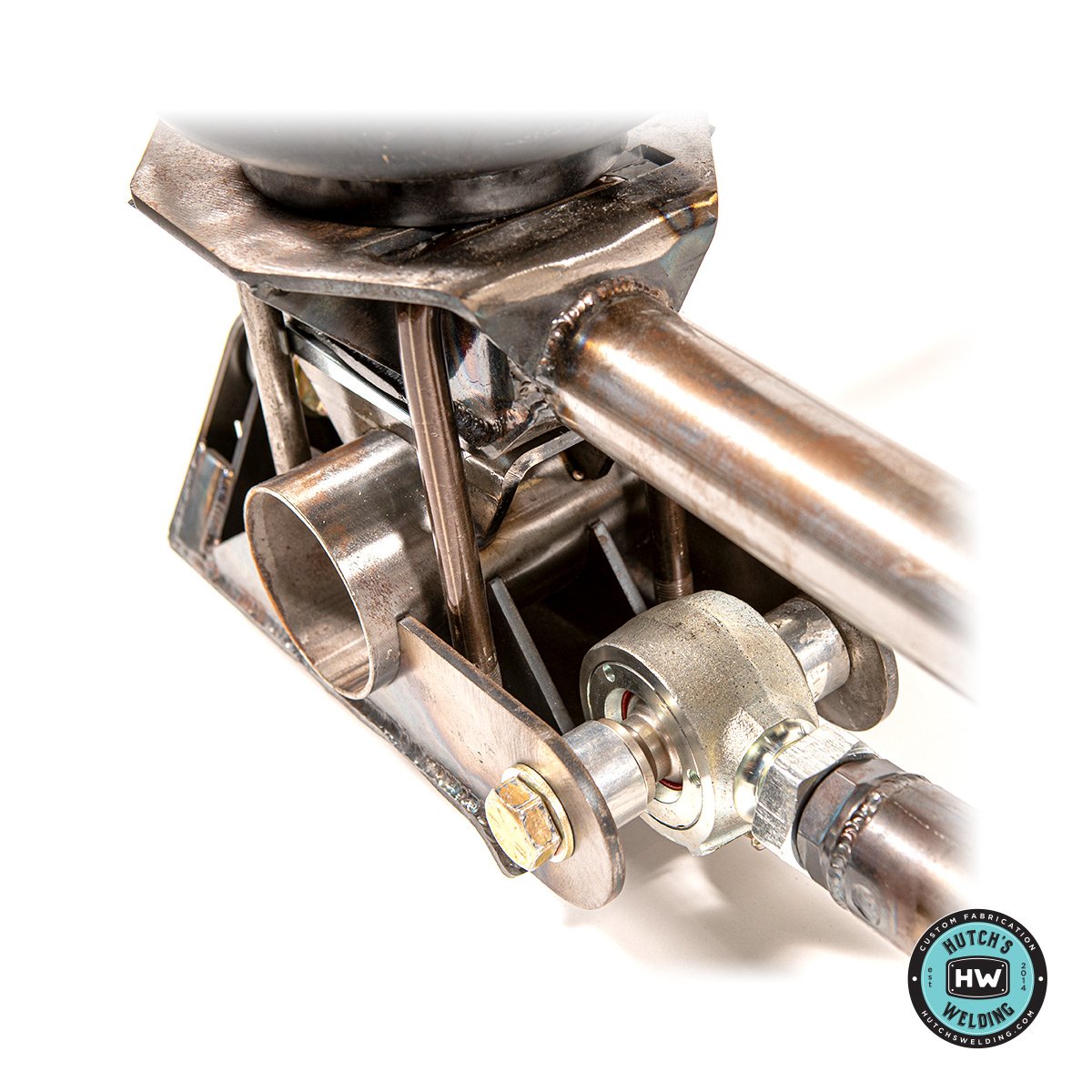

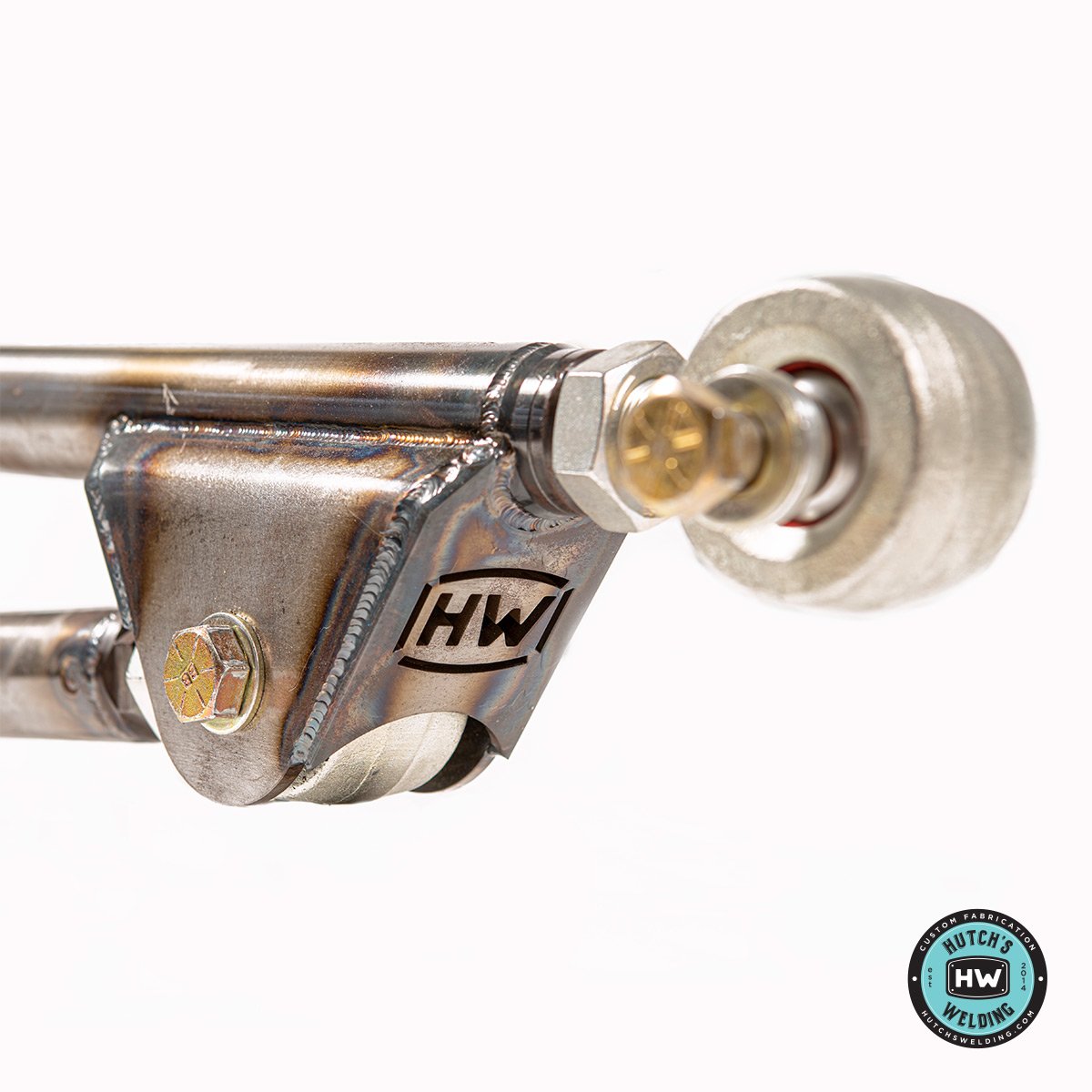

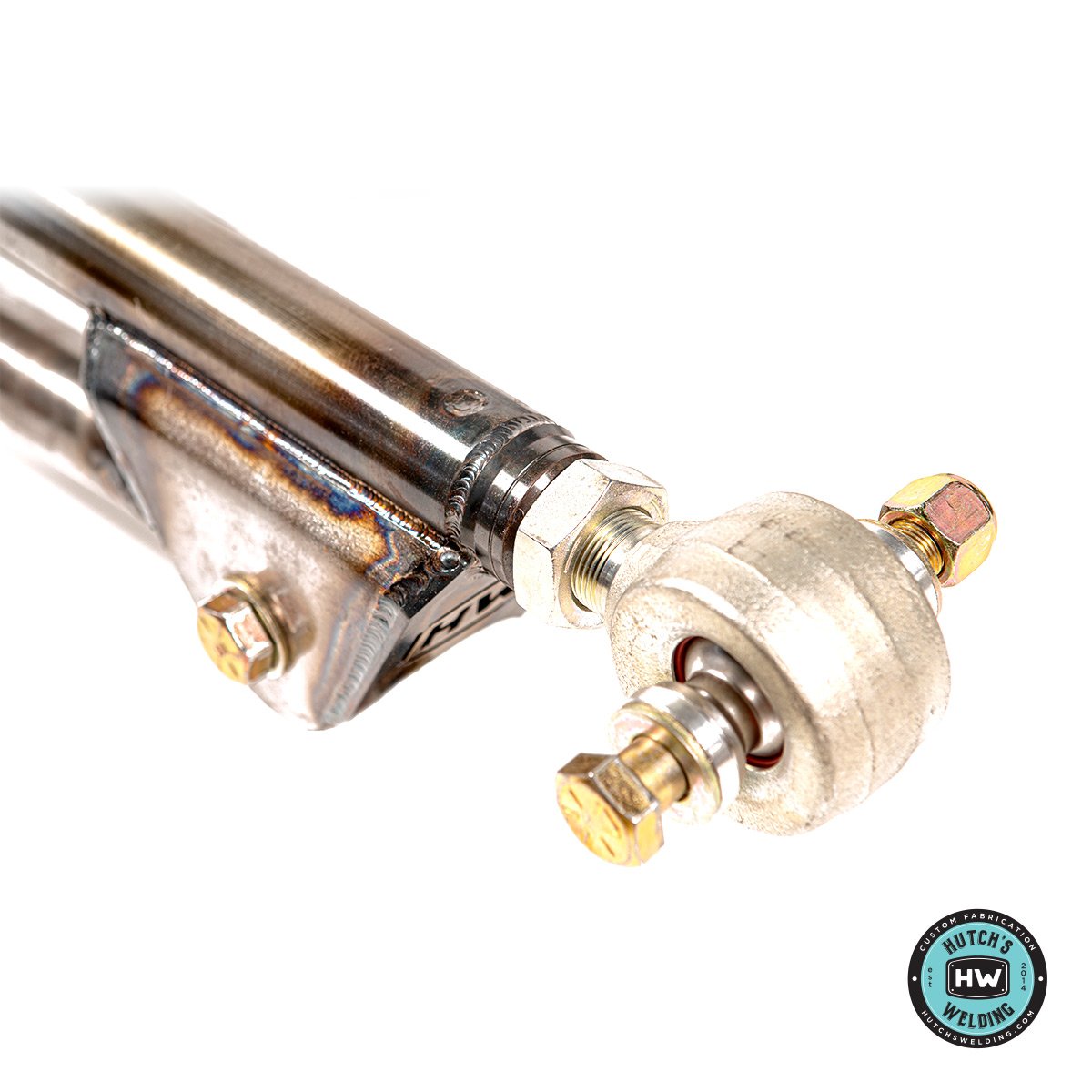

This kit deletes your leaf springs & replaces with heavy duty 3 link, utilizing your front leaf spring perch, and bolting on your factory axle. It uses extreme duty Ballistic fabrication greasable & rebuildable heim joints, and 2″ DOM .250 wall tubing that is precisely TIG welded. All brackets are fabricated using 1/4″ steel, also includes grade 8 hardware, Slam Specialties SS8 air bags, and air fittings.

Lifting options are available via custom order. Please contact me directly for more information.

Lowered kit

Designed for factory height to fully lowered, Known to use a 24×14 wheel using 305/35/24 Nitto Terra Grappler.

This kit replaces your front coil spring, bolts onto your lower spring perch and bolts onto your upper coil bucket. All brackets are fabricated using 1/4″ steel, also includes grade 8 hardware, Slam Specialties SS7 air bags, and air fittings.

Adjustable Radius Arms are recommended to get a correct alignment.

*OFF ROAD USE ONLY

Leveled kit

The Leveled kit will simulate a leveled truck ride height with approximately 35″ tire.
2wd will require a 6″ 2wd lift kit that simulates a 4″ 4wd lift.
*OFF ROAD USE ONLY

Lowered kit

Designed for factory height to fully lowered, Known to use a 24×14 wheel using 305/35/24 Nitto Terra Grappler.

This kit replaces your front coil spring, bolts onto your lower spring perch and bolts onto your upper coil bucket. All brackets are fabricated using 1/4″ steel, also includes grade 8 hardware, Slam Specialties SS7 air bags, and air fittings.

Adjustable Radius Arms are recommended to get a correct alignment.

*OFF ROAD USE ONLY

Leveled kit

The Leveled kit will simulate a leveled truck ride height with approximately 35″ tire.
2wd will require a 6″ 2wd lift kit that simulates a 4″ 4wd lift.
*OFF ROAD USE ONLY

Lifted kit

Our lifted version will give you a 6″ lifted ride height and allow you to run a 37″ tall tire

*OFF ROAD USE ONLY

Additional information

Year

99-02, 03-07, 08-10, 11-16, 17-23

Drive

4WD, 2WD

Application

Lower, Level, Lift

Model

F250, F350 SRW, F350 DRW
